In most everyday slab jobs, the answer is simpler than people make it. For a small domestic slab, A142 is often enough. For many extension slabs, A193 is the mesh contractors reach for first. For house slabs and more heavily loaded domestic work, A252 is a common step up. A393 does have its place, but it is often specified by habit rather than real need, and it is easy to overdo it if the slab, loading and ground conditions do not justify it.
The important bit is this: mesh choice should follow the slab design, thickness, loading, support conditions and reinforcement layout, not guesswork. Even for relatively standard domestic work, slab thickness and cover requirements can change what is practical and appropriate. UK practice commonly treats 125mm as a sensible baseline for many small slabs, but final thickness and reinforcement should always be confirmed against the actual design requirements.
Important: This guide is for practical general information only. Mesh selection should be confirmed against the engineer’s drawings, loading requirements, ground conditions, slab thickness, concrete strength, cover requirements and applicable standards. Do not use this article as a substitute for structural design.
Quick guidance on mesh types for common slab scenarios
- Small domestic slab: often A142
- Extension slab: often A193
- House slab: often A193 or A252
- Heavier load slab: often A252 or A393, depending on design
If you want the fuller comparison between the common mesh grades, see our guide to A142, A193, A252 and A393 reinforcing mesh.
Typical slab scenarios
Small domestic slab
For a basic slab such as a shed base, bin store base, or a lightly loaded garden workshop slab, A142 is often the starting point. That is especially true where the slab is relatively modest in area, properly compacted, and not intended for vehicle loading.
What contractors usually mean here is a slab that needs crack control and general reinforcement, but not something carrying serious structural loads. In that sort of job, jumping straight to A393 can be a bit like wearing a hard hat to butter toast. Admirably cautious, but not always necessary.
Extension slab
For many single-storey extension slabs, A193 is a very common practical choice. It gives a useful step up from A142 without becoming awkwardly heavy for smaller jobs. If the slab area is moderate, the loading is normal domestic use, and the engineer has not called for anything heavier, A193 is often where contractors land.
That said, some extension slabs will move into A252 territory where spans, loads, thickened edges, or local ground concerns justify it.
House slab
For a new-build house slab or more substantial domestic floor slab, A193 or A252 is often more realistic than A142. The exact choice depends on the design, the slab thickness, the support arrangement and what the engineer is trying to achieve in terms of crack control and load distribution.
Where people go wrong is assuming “house slab” automatically means “A393”. Sometimes it does not. Sometimes A252 is the better fit. Sometimes the design may call for something different altogether.
Heavier load slab
Once you move into heavier point loads, vehicle loads, plant, storage loads, or a slab with a more demanding structural role, A252 and A393 become more likely. This is where over-simplified rules of thumb start to break down.
If the slab is doing more than just sitting there looking helpful, the mesh needs to follow the actual design intent. Heavier mesh may be right, but heavier mesh in the wrong place is still wrong.
Mesh positioning: top vs middle placement
One of the biggest mistakes on site is treating mesh as if it just needs to be somewhere inside the concrete. It does not. Position matters.
For many ground-bearing slabs, mesh is commonly placed in the upper half of the slab depth, not sat uselessly on the bottom. That is because the reinforcement is often there to help control cracking where tensile stresses are expected near the top surface from shrinkage, restraint or local bending effects.
In some slabs, the design may require central placement. In others, top placement is more appropriate. The drawings should decide that, not the nearest boot.
If the mesh ends up buried too low because it was not supported properly on spacers, the slab may still look fine on pour day, then reward everyone later with cracking. Concrete has a long memory and a nasty sense of humour.
When one layer is enough and when two layers are used
For many domestic and light commercial slabs, one layer of mesh is all that is required. That is typical where the slab thickness and loading are moderate and the structural design does not call for top-and-bottom reinforcement.
Two layers are more likely where:
- the slab is thicker and more structural in nature
- there are significant bending stresses in more than one zone
- loads are heavier
- the engineer has detailed separate top and bottom reinforcement
- there are local reinforcement requirements around openings, load points or changes in section
As soon as you move into two layers, slab thickness, cover and bar spacing become even more important. Reinforcement increases the depth required because you need enough concrete cover and room for the reinforcement layout to work properly.
Real-world examples
Example 1: Small garden workshop slab
Slab size: 3m x 3m
Thickness: 100mm to 125mm depending on design and use
Typical mesh choice: A142
For a lightly loaded slab of this kind, A142 is often the practical choice where the base is properly prepared and no unusual loading is expected.

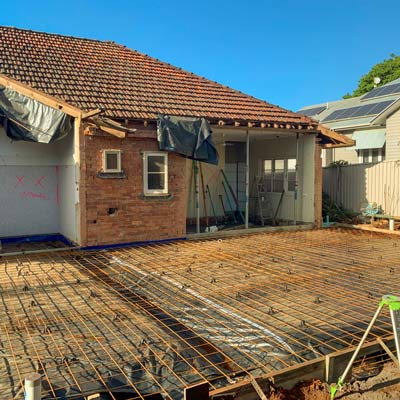

Example 2: Rear extension slab
Slab size: 6m x 4m
Thickness: often around 125mm or as designed
Typical mesh choice: A193
This is the sort of job where many contractors naturally move to A193. It is a common middle-ground option for domestic extensions where a bit more reinforcement is wanted without jumping straight to heavier mesh.
Example 3: New house slab
Slab size: 10m x 8m
Thickness: as designed
Typical mesh choice: A193 or A252
For a full house slab, A142 can easily start to feel too light. A193 may still work in some designs, while A252 is often used where loads, spans or overall slab performance push things upward.

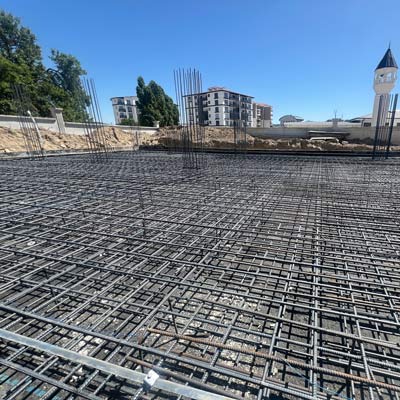

Example 4: Heavier-duty yard or working slab
Slab size: 8m x 8m
Thickness: often significantly greater, depending on loading
Typical mesh choice: A252 or A393, often double layer
For a slab expecting heavier traffic, stored materials or harder use, A393 becomes more plausible. The key word is plausible, not automatic. The correct answer still depends on the slab design.
Common mistakes
Over-specifying A393
A393 gets thrown at plenty of jobs because it feels safe. Sometimes it is the right answer. Sometimes it is simply the most expensive answer within arm’s reach.
Using heavier mesh than needed can add unnecessary cost, make handling harder, and complicate installation without delivering a meaningful benefit. The correct mesh is the one the slab actually needs, not the one that sounds most serious.
Incorrect placement
Mesh that ends up on the sub-base instead of being properly supported might as well be there for emotional support. If it is not in the right position, it is not doing the job it was meant to do.
Use the right spacers and maintain cover properly. Reinforcement position is part of the design, not a decorative suggestion.
Ignoring overlaps
Mesh sheets need to be lapped correctly. Too often, contractors focus on the mesh grade and forget the practical basics of making the reinforcement continuous.
If you want help working out sheet quantities and allowances for laps, see how much reinforcing mesh you need.
Practical guidance: what most contractors actually do vs theory
On site, contractors often work from a short list of familiar defaults:
- A142 for small light-duty slabs
- A193 for a lot of extension work
- A252 for more substantial slabs
- A393 when loads are heavier or drawings clearly call for it
That practical approach is not necessarily wrong. In fact, it usually reflects what gets used repeatedly in real jobs. The problem starts when the shortcut replaces the design thinking altogether.
Theory says the mesh should be selected from the structural requirements. Real life says people often choose from what is commonly stocked, familiar, easy to price and likely to satisfy the job. The sensible middle ground is to use practical judgement, but still tie it back to the actual slab requirements.
If you have slab dimensions, quantities, or drawings ready, send them over for a quote. If you are not sure which mesh specification fits the job, get in touch and we can help you work through it.
If you are also planning delivery or trying to avoid ordering the wrong format or quantity, see our reinforcing mesh ordering guide.
Conclusion
If you want the blunt version, here it is:
- A142 is often enough for small domestic slabs
- A193 is a common choice for extension slabs
- A193 or A252 is often used for house slabs
- A252 or A393 is more likely for heavier load slabs
But mesh grade is only half the story. Placement, laps, cover, slab thickness and the actual loading matter just as much. A perfectly chosen mesh installed badly is still a bad result.
Most standard mesh is available from stock, which means once the specification is clear, orders can usually be turned around quickly without long lead times.
If you have drawings, send them over and we can quote against the specification. If not, a quick call with basic dimensions is usually enough to confirm the mesh and get a price back without delays.
